AWS Networking
VPC Connections
In the expansive cloud computing domain, Amazon Web Services (AWS) offers networking solutions to enable seamless connectivity between Virtual Private Clouds (VPCs), on-premises infrastructure, and complex network architectures. AWS Transit Gateway, VPC Peering, and AWS Direct Connect stand out as fundamental tools, each addressing distinct connectivity challenges with unique capabilities, benefits, and limitations. While Transit Gateway often leads to creating a Hub-and-Spoke model, it is a different mechanism that simplifies large-scale network management. This essay explores the differences between Transit Gateway, VPC Peering, and Direct Connect, focusing on their functionalities, use cases, and roles in building efficient AWS network architectures.
AWS Transit Gateway is a centralized hub that streamlines connectivity across multiple VPCs, on-premises networks, and other AWS resources. By acting as a single gateway, it enables transitive routing, allowing VPCs to communicate with each other indirectly without requiring direct connections. This capability is a cornerstone of the Hub-and-Spoke model, where the Transit Gateway functions as the "hub" and VPCs or other networks act as "spokes." This model simplifies network management by reducing the connections needed, making it highly scalable for environments with numerous VPCs. For instance, an enterprise with dozens of VPCs across different regions can use Transit Gateway to centralize traffic routing, enforce security policies, or integrate with on-premises networks via VPN or Direct Connect. It supports cross-region and cross-account connectivity, making it ideal for distributed applications, and allows for policy-driven routing to enhance security and segmentation. However, Transit Gateway introduces additional costs based on attachment hours and data transfer, which can be higher than other solutions. Traffic must also pass through the gateway, potentially adding slight latency, and careful design is required to avoid the gateway becoming a single point of failure. Despite these trade-offs, Transit Gateway’s ability to create a scalable, manageable Hub-and-Spoke architecture makes it a powerful tool for complex network environments.
In contrast, VPC Peering provides a direct, one-to-one connection between two VPCs, allowing them to communicate as if they were part of the same network. Using private IP addresses ensures low-latency, private communication without traversing the public internet. This bidirectional connection is reliable and straightforward, with no single point of failure since it does not rely on a central gateway. VPC Peering supports connections across different AWS accounts and regions, making it suitable for scenarios where specific VPCs need to share resources, such as databases or applications. For example, a development team’s VPC might use VPC Peering to access a production VPC’s database securely, or microservices hosted in separate VPCs might communicate efficiently. Its cost-effectiveness is a significant advantage, as it incurs no additional charges beyond standard AWS data transfer fees. However, VPC Peering does not support transitive routing, meaning that if VPC A is peered with VPC B, and VPC B with VPC C, VPC A cannot communicate with VPC C without a separate peering connection. Additionally, VPCs with overlapping IP address ranges cannot be peered, and managing multiple peering connections in large environments can become complex, limiting their scalability compared to Transit Gateway’s centralized approach.
Unlike the VPC-focused Transit Gateway and VPC Peering, AWS Direct Connect is designed to connect on-premises data centers to AWS through a dedicated network link that bypasses the public internet. This solution provides private, high-bandwidth, and low-latency communication, with bandwidth options ranging from 1 Gbps to 100 Gbps. Direct Connect enhances security and reliability by avoiding the public internet, making it a preferred choice for organizations with strict compliance requirements. It is ideal for large-scale data transfers, such as backups or disaster recovery, and supports hybrid cloud architectures by integrating on-premises systems with AWS VPCs. For instance, a financial institution might use Direct Connect to run latency-sensitive trading applications requiring consistent, high-speed connections to AWS services. Through Direct Connect Gateways, organizations can access multiple AWS regions, providing global connectivity. However, Direct Connect is more expensive than internet-based alternatives like VPNs, and its setup requires physical infrastructure at a Direct Connect location, which can be complex and time-consuming. It is also not designed for VPC-to-VPC communication or general internet access, focusing solely on private connectivity between on-premises environments and AWS.
Comparing these solutions reveals their distinct purposes. Transit Gateway excels in managing complex, multi-VPC environments, creating a Hub-and-Spoke model that supports transitive routing and centralized control. Its scalability and integration with on-premises networks make it ideal for large enterprises, though it comes with higher costs and potential latency. VPC Peering is suited for simple, direct VPC-to-VPC communication, offering low latency and minimal cost but lacking transitive routing and scalability for large networks. Direct Connect is the go-to solution for secure, high-performance connectivity between on-premises infrastructure and AWS, particularly for hybrid cloud or data-intensive applications. Still, its cost and setup complexity limit its scope to specific use cases. While Transit Gateway’s Hub-and-Spoke model addresses the scalability limitations of VPC Peering, it introduces additional costs and latency compared to Peering’s direct connections. Conversely, Direct Connect’s focus on on-premises connectivity complements both Transit Gateway and VPC Peering, which are primarily cloud-centric.
The choice between Transit Gateway, VPC Peering, and Direct Connect depends on an organization’s specific needs. Transit Gateway is optimal for large-scale, multi-VPC environments requiring centralized management and transitive routing, often resulting in a Hub-and-Spoke architecture that simplifies complex networks. VPC Peering is best for straightforward, cost-effective connections between a few VPCs where direct communication is sufficient. Direct Connect is essential for organizations needing secure, high-bandwidth links between on-premises systems and AWS, particularly for hybrid cloud or latency-sensitive applications. By understanding the strengths and trade-offs of Transit Gateway, VPC Peering, and Direct Connect, organizations can design AWS network architectures that align with their operational, security, and budgetary requirements, ensuring efficient and secure communication in the cloud.

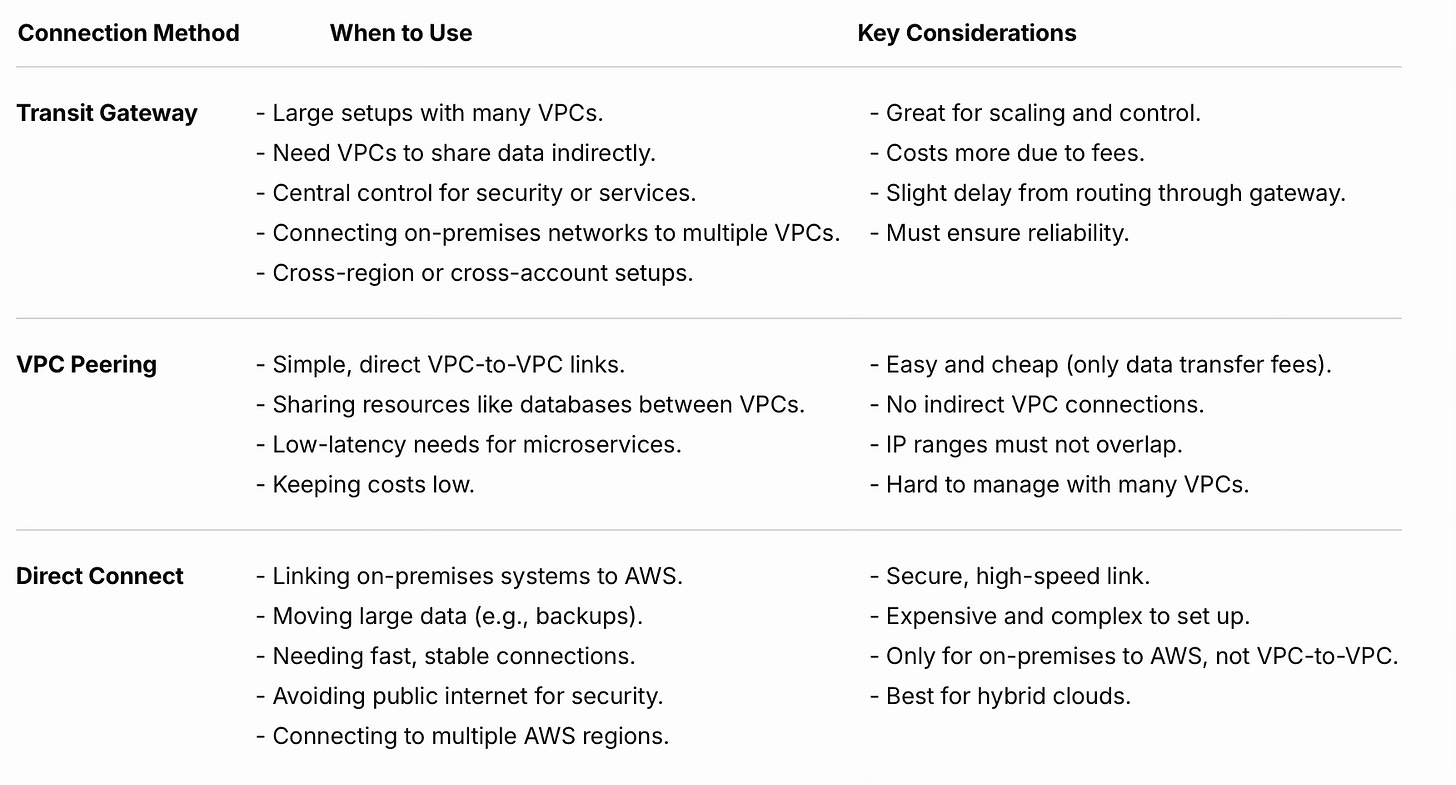

When to Use AWS VPC Connections
